Minimum clearance of the oven (built-in or standalone) to combustible materials is as follows:
Top: 14” (356 mm)
Back & Sides: 1” (25 mm)
SKU:MASONRY-DUO-S-W
The Fiero Team is committed to delivering quality products and exceptional after-sales care. Each product has been carefully chosen and tested to prove its value and effectiveness in the most demanding commercial kitchens. When a Fiero product is purchased, attention to detail and excellent service are our promise, long past the purchase date.

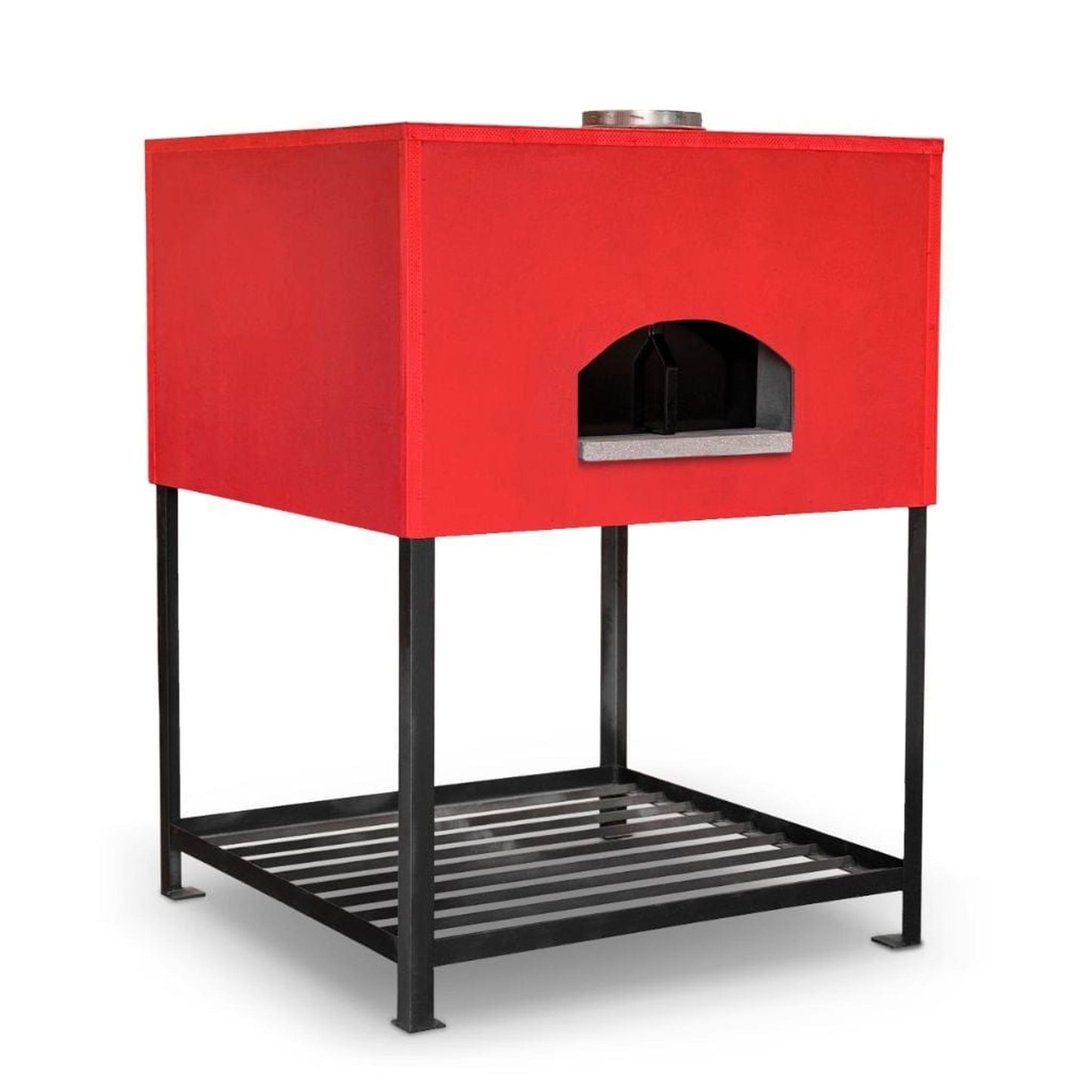

The Masonry Duo is a hand-built Italian hearth-style brick oven designed for residential use. It features a red waterproof facade that allows for installation in the exterior or interior of the home. The facade is designed to be clad in any desired noncombustible material to allow for personal customization. The oven hearth is designed & manufactured in Modena, Italy as a solid, single-piece refractory or diameter measuring 35.4” while the Masonry Quattro measuring 43.3”, with an unadorned cement board arch opening that allows access to the hearth at 21.6” wide by 8.3” tall. Wood fuel is combusted directly within the hearth maximizing energy eciency and power.
Fiero At Home
Crafted entirely by hand in Modena – Italy, using the highest quality refractory materials and the best performing insulation for a durable oven with consistent baking performance.
Adapted from our commercial line to be more compact, whilst maintaining the same power and capabilities as our professional ovens. Indoors or outdoors, this addition will be the focal point of your home.
Metal Frame & Wood Rack
The reinforced metal frame provides solid support to the overall structure while also allowing for a tidy firewood storage spot underneath the oven for year-round usage and protection.
Let The Oven Do The Work
The oven hearth is designed to be a solid, single-piece refractory floor providing an even distribution of heat across the baking surface, preventing hot and cold spots.
This oven gives you all the advantages of a professional pizzaiolo working with a premier oven.
Ventilation
Ventilation material is not included. The oven shall be directly connected to a UL 103 HT listed chimney or equivalent standard per NFPA 211 & local codes. The chimney must terminate to a chimney cap with a UL-listed spark arrester. Installation requirements may vary de- pendent upon the desired chimney run.
Operational Airflow: 200 CFM
Static Pressure at Flue Collar: 0.05 in H2O
Clearances
Duo
Minimum clearance of the oven (built-in or standalone) to combustible materials is as follows:
Top: 14” (356 mm)
Back & Sides: 1” (25 mm)
Non-combustible flooring must extend out at least 36” (914 mm) from the oven opening and at least 30” (762 mm) to each side of the opening. Do not fill the required air space with insulation or other materials.
Quattro
Minimum clearance of the oven (built-in or standalone) to combustible materials is as follows:
Top: 14” (356 mm)
Back & Sides: 1” (25 mm)
Non-combustible flooring must extend out at least 36” (914 mm) from the oven opening and at least 30” (762 mm) to each side of the opening. Do not fill the required air space with insulation or other materials.
Model No. | MASONRY-DUO-S-W | MASONRY-QUATTRO-S-W |
12" Pizza Capacity | 2 Pizzas | 4 Pizzas |
Weight | 1200 | 1900 |
Height | 68.5" | 68.5" |
Width | 48" | 59" |
Depth | 47.5" | 60" |
Baking Surface | 35.4" | 43.3" |
Baking Chamber Floor Shape | Circle | Circle |
Baking Chamber Opening | 8.3" x 21.6" | 8.3" x 21.6" |
Baking Chamber | 1 | 1 |
Daily Preheat Time (minutes) | 45 | 45 |
Pizza Baking Time | Ultra versatile | Ultra versatile |
Oven Temperature Range | 500-1000ºF | 500-1000ºF |
Roast Chicken Hearth Capacity | 3 | 6 |
Bread Loaf Hearth Capacity | 6 | 12 |
Fuel Options | Wood, Gas, or Dual | Wood, Gas, or Dual |
Gas Options | LPG or Natural Gas | LPG or Natural Gas |
