Broilmaster

P4X

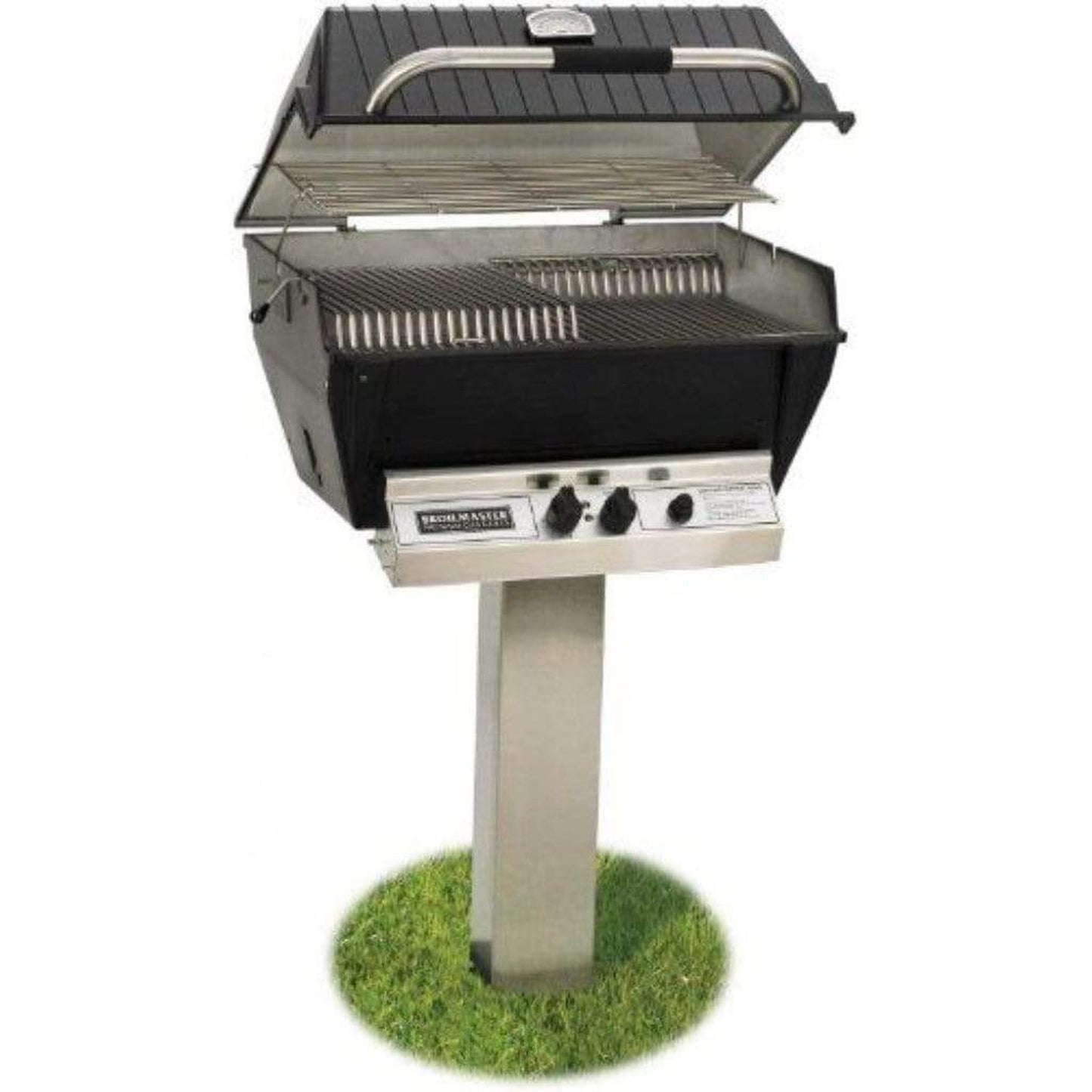

Broilmaster P4X Premium Gas Grill

Fuel Type
Cart/Post Options


Estimated Arrival: Between and to all contiguous states. Subject to availability.


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-918-4150, start live chat, or email support@grillcollection.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

The Broilmaster Story

Since 1966, grilling enthusiasts have trusted Broilmaster for exceptional performance, durability, and unmatched support. Backed by quality and support, Broilmaster owners grill on their Broilmaster for decades and pass them on to the next generation.

Historically, Broilmaster’s cast-aluminum grill head featured a deep bottom casting that allowed more uniform temperature across the cooking grid. The original Broilmaster G-1000 also featured the now legendary Bow Tie Burner, known for even heat distribution. Variations of both can be found on most modern Broilmaster grills.

Throughout the years Broilmaster expanded the cast-aluminum offerings to include a full line up of gas, infrared, and charcoal grills. Each Broilmaster grill incorporates a variety of features such as multi-level cooking grids, retract-a-rack, separate burner controls, stainless steel griddles, and the patented Smoker Shutter.

In 2018 we introduced the Broilmaster Stainless gas grill series. Broilmaster Stainless gas grills combine the distinctive features of an original Broilmaster with a sleek, contemporary design. The versatile multi-level cooking grids, retract-a-rack, and timeless Bow Tie Burner live on in this new generation of stainless steel grills.

With the combination of versatile cooking capabilities, convenient features, and unmatched customer service, a Broilmaster grill is truly the grill of a lifetime.


Description

The Broilmaster Premium P4X gas grill features the Bow Tie Burner for exceptional heat distribution and up to 40,000 BTUs. With a durable cast-aluminum exterior construction, the Broilmaster Premium P4X is built to last. A total of 473 square inches of total cooking area, several standard features, and optional accessories provide a variety of cooking options for any size crowd.

Also available in P4XFmodel and P3X Series.



Standard Features

Heavy-Duty Cast Aluminum Construction

Designed to Last and Maintain Cooking Temp

Stainless Steel Bow Tie Burner

Evenly Distributes Heat Across the Cooking Area

Multi-Level Stainless Steel Cooking Grids

Provide Control Over Food Distance To The Flame

Stainless Steel Folding Retrack-A-Rack

Serves as an Added Cooking Level and Retracts For Additional Cooking Space

Char-master Briquets

Converts Your Broilmaster Grill to an Indirect Cooking System

Stainless Steel Control Panel

Separate Left and Right Controls For Indirect Cooking, Grilling, and Roasting



Other Features

  • Propane or Natural Gas
  • Size: 24 Inches(P4XN, P4X)
  • Color: Black(P4XN, P4X)
  • Cast aluminum grill head
  • Stainless steel control panel
  • Stainless steel bow tie burner
  • Fits all Broilmaster mountings
  • Stainless steel folding retract-a-rack
  • Main Burner BTUs: 40,000


Technical Specifications

 Fuel Type:  Propane or Natural Gas
 Maximum BTU Output:  40,000
Total Grilling Area
 473 Sq. Inches
 Color:  Black
 Item Weight:  63 lbs.
Overall Dimension:  W 24" x H 19" x D 16.25"
 Main Burner Configuration:  Conventional
 Number of Main Burners:  1 Burner
 Ignition:  Electronic
 Cooking Grid Material:  Stainless Steel
 Warming Rack Material:  Stainless Steel
 Burner Material:  Stainless Steel
 Grill Exterior Material:  Cast-Aluminum



P4X Series Includes:

  • Two stainless Steel Rod Cooking Grids- 2-Level Adjustable (473 Sq. In. Of total cooking area)
  • Stainless Steel Folding Retrack-A-Rack
  • Stainless Steel Bowtie Burner (40,000 Btu)
  • Electronic Ignition
  • Char-master Briquets

Requires:

  • Cart or Post



BROILMASTER WARRANTY

LIMITED LIFETIME   Against Rust-through

Aluminum Grill Housing (except paint), Stainless Steel Cooking Grids and Stainless Steel Griddles, Select Stainless Steel Components – Cart, Mounting, Bow Tie Burner, Side Burner (DPA150), Side Burner (DPA151), Side Shelf (DPA153), and Warming Rack, Stainless Steel Built-In Components – Built-In Kits for 3-Series Grill Heads, Side Burner Surround (DPA152), Door Kit, Tilt-Out LP Tank Door, and Vent Register Kit

10 YEARS   Against Rust-through

Stainless Steel Burners for H-Series and R3B

5 YEARS   Against Rust-through

Infrared Burners on R3 and R3B, and Side Burner (DPA151), Flare Buster™ Ceramic Flavor Enhancer , Painted Electro-Galvanized Steel Components, Stainless Steel Smoker Shutter

2 YEARS   Against Rust-through

Porcelain Coated Steel Briquet Racks, Chrome-Plated Warming Rack, Stainless Steel Flavor Screen, Stainless Steel Heat Shield

1 YEAR   Against Rust-through

Valves, knobs, ignitors, labels, hoses, fittings, grease cups, drip buckets, and all other parts and accessories – including those made from stainless steel – unless specified above, paint on aluminum grill head





Options and Accessories

Click to see Cart Options

Black Painted Steel Cart DCB1

  • Painted steel construction with molded plastic base
  • Removable casters for mobile or stationary use
  • Easy to set up
  • Weight: 25.5 lbs
  • Dimensions: 23 × 23 × 28 in
  • Color: Black
  • External Material: Painted Steel

Stainless Steel Cart PCB1

  • Painted steel construction with molded plastic base
  • Removable casters for mobile or stationary use
  • Easy to set up
  • Weight: 24 lbs
  • Dimensions: 23 × 23 × 28 in
  • Color: Stainless Steel
  • External Material: stainless Steel

Stainless Steel Storage Cart PSCB1

  • Rust-resistant stainless steel construction
  • Storage cabinet with door holds fuel tank, tools, and accessories
  • Includes hooks for holding tools and grilling implements
  • Removable casters for mobile or stationary use
  • Easy to set up
  • Weight: 42 lbs
  • Dimensions: 23 × 20 × 28 in
  • Color: Stainless Steel
  • External Material: Stainless Steel
  • Note: P3X, H3X, H4X, Q3X - Not recommended for use with front shelf)

Click to see Post Options

PAINTED STEEL PATIO POST BL26P

  • Durable, rust-resistant stainless steel construction with cast iron base
  • Compatible with Broilmaster P3 & P4 series grill heads
  • Weight: 30 lbs
  • Dimensions: 6 × 4.5 × 26 in
  • Color: Black
  • External Material: Painted Steel

STAINLESS STEEL PATIO POST SS26P

  • Durable, rust-resistant stainless steel construction with cast iron base
  • Compatible with Broilmaster P3 & P4 series grill heads
  • Weight: 30 lbs
  • Dimensions: 6 × 4.5 × 26 in
  • Color: Stainless Steel
  • External Material: Stainless Steel

PAINTED STEEL IN-GROUND POST BL48G

  • Durable, rust-resistant stainless steel construction
  • Compatible with Broilmaster P3 & P4 series grill heads
  • Weight: 8.3 lbs
  • Dimensions: 6 × 4.5 × 48 in
  • Color: Black
  • External Material: Painted Steel

STAINLESS STEEL IN-GROUND POST SS48G

  • Durable, rust-resistant stainless steel construction
  • Compatible with Broilmaster P3 & P4 series grill heads
  • Weight: 8.3 lbs
  • Dimensions: 6 × 4.5 × 48 in
  • Color: Stainless Steel
  • External Material: Stainless Steel

Click to see Shelf Options

BLACK SOLID SURFACE SIDE SHELF SKFPB2

  • Durable composite construction with painted steel bracket
  • Includes two integrated cup holders
  • Compatible with Broilmaster P3 & P4 gas grill heads
  • Weight: 6.5 lbs
  • Dimensions: 18.5 × 21.25 in
  • Color: Black
  • External Material: Composite, Painted Steel

BLACK SOLID SURFACE SIDE SHELF SKFB2

  • Durable composite construction with painted steel bracket
  • Includes two integrated cup holders
  • Compatible with Broilmaster P3 & P4 gas grill heads
  • Weight: 6.5 lbs
  • Dimensions: 18.5 × 21.25 in
  • Color: Black, Stainless Steel
  • External Material: Composite, Stainless Steel

STAINLESS STEEL SIDE SHELF SKSS2

  • Durable stainless steel construction
  • Compatible with Broilmaster P3 & P4 gas grill heads
  • Weight: 5 lbs
  • Dimensions: 13.25 × 12 in
  • Color: Stainless Steel
  • External Material: Stainless Steel

STAINLESS STEEL DROP DOWN SHELF DPA153

  • Durable, rust-resistant stainless steel construction
  • Includes hooks for hanging tools and implements
  • Compatible with DPA150 Side Burner & DPA151 Infrared Side Burner
  • Weight: 7.5 lbs
  • Dimensions: 17.25 × 14.75 in
  • Color: Stainless Steel
  • External Material: Stainless Steel

BLACK COMPOSITE SURFACE FRONT SHELF FKBLACK

  • Durable composite construction with stainless steel bracket
  • Includes two integrated cup holders
  • Compatible with Broilmaster P3 & P4 gas grill heads
  • Weight: 5 lbs
  • Dimensions: 27.5 × 12 in
  • Color: Black, Stainless Steel
  • External Material: Composite, Stainless Steel
  • Note: Not recommended for use with PSCB1 Cart

STAINLESS STEEL FRONT SHELF FKSS

  • Durable, rust-resistant stainless steel construction
  • Compatible with Broilmaster P3 & P4 gas grill heads
  • Weight 5 lbs
  • Dimensions 24 × 9.5 in
  • Color: Stainless Steel
  • External Material: Stainless Steel
  • Note: Not recommended for use with PSCB1 Cart

Click to see Side Burners

Infrared Side Burner

  • 10,000 BTU burner output
  • Electronic ignition
  • Compatible with Propane or Natural Gas installation
  • Requires Broilmaster DPA153 side shelf*
  • Weight: 12.5 lbs
  • Dimensions: 17 × 12.5 in
  • Fuel Type: Propane, Natural Gas
  • External Material: Stainless Steel
  • Grilling Surface BTUs: 10,000
  • Main Burner Material: Stainless Steel
  • Total Grilling Area: 200 Sq. Inches
  • Ignition Type: Continuous Spark

Blue Flame Side Burner

  • 15,000 BTU burner output
  • Electronic ignition
  • Emits blue flame with conversion kit
  • Compatible with Propane or Natural Gas installation
  • Requires Broilmaster DPA153 side shelf*
  • Weight: 9.5 lbs
  • Dimensions: 17 × 12.5 in
  • Fuel Type: Propane, Natural Gas
  • External Material: Stainless Steel
  • Grill Surface BTUs: 15,000
  • Main Burner Material: Stainless Steel
  • Total Grilling Area: 200 Sq. Inches
  • Ignition Type: Continuous Spark

Click to see Flavor Enhancer

Flare Buster Flavor Enhancer for P4 Series Grills

Flare Buster flavor enhancers provide exceptional heat distribution when used with your Broilmaster grill. They also protect the burner from any food drippings to reduce flare-ups.

Note:Requires B067449 Rack if replacing flavor screen

Char-Master Briquets

Enhance the flavor of your food by using these Char-Master ceramic briquets in your Broilmaster gas grill. Heated by the burner, they help distribute heat evenly and maintain a consistent temperature. Drippings fall onto the briquets instead of the burner and burn off to create a smoke to give grill foods a charcoal flavor.


Click to see Other Accessories

Cast Aluminum Cover

Protect your Broilmaster grill and cart when not in use with the Broilmaster grill cover. Three variations are available to fit over shelving, side burners and other accessories. Covers are available in black only.

Heavy Duty Rotisserie Kit

Add the motorized rotisserie kit allows you to roast a whole chicken, pork loin, roast, and much more in the convenience of your Broilmaster Stainless gas grill. The rotisserie kit and included counterweight evenly roasts large cuts of meat from every angle.

Grid Lifter Kit

  • Lifts Broilmaster Grids
  • Keeps Hands Clean
  • Stainless Steel with Insulated Handle





Downloads

 WARNING: Click to See Proposition 65



Broilmaster Assembly Video:
